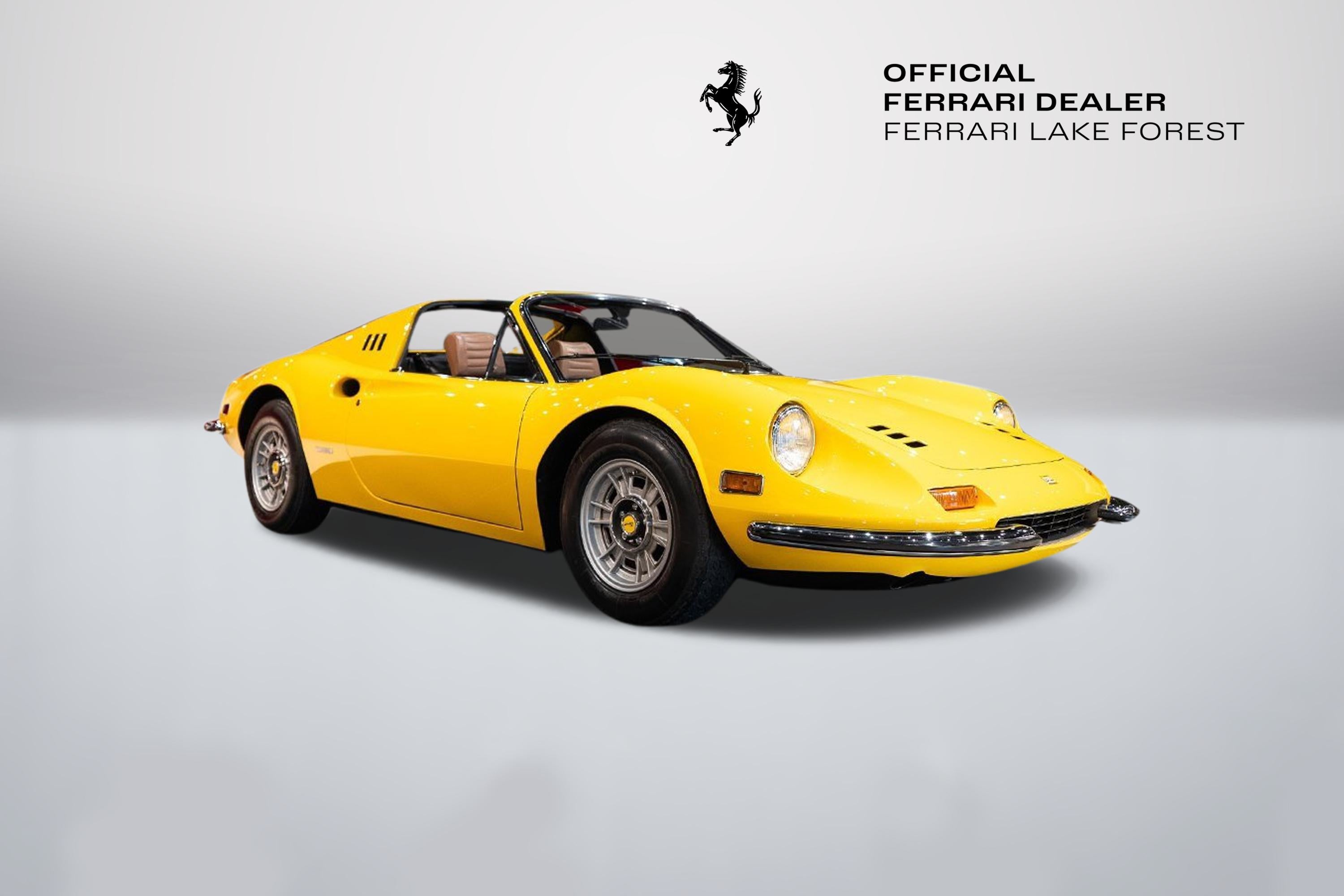

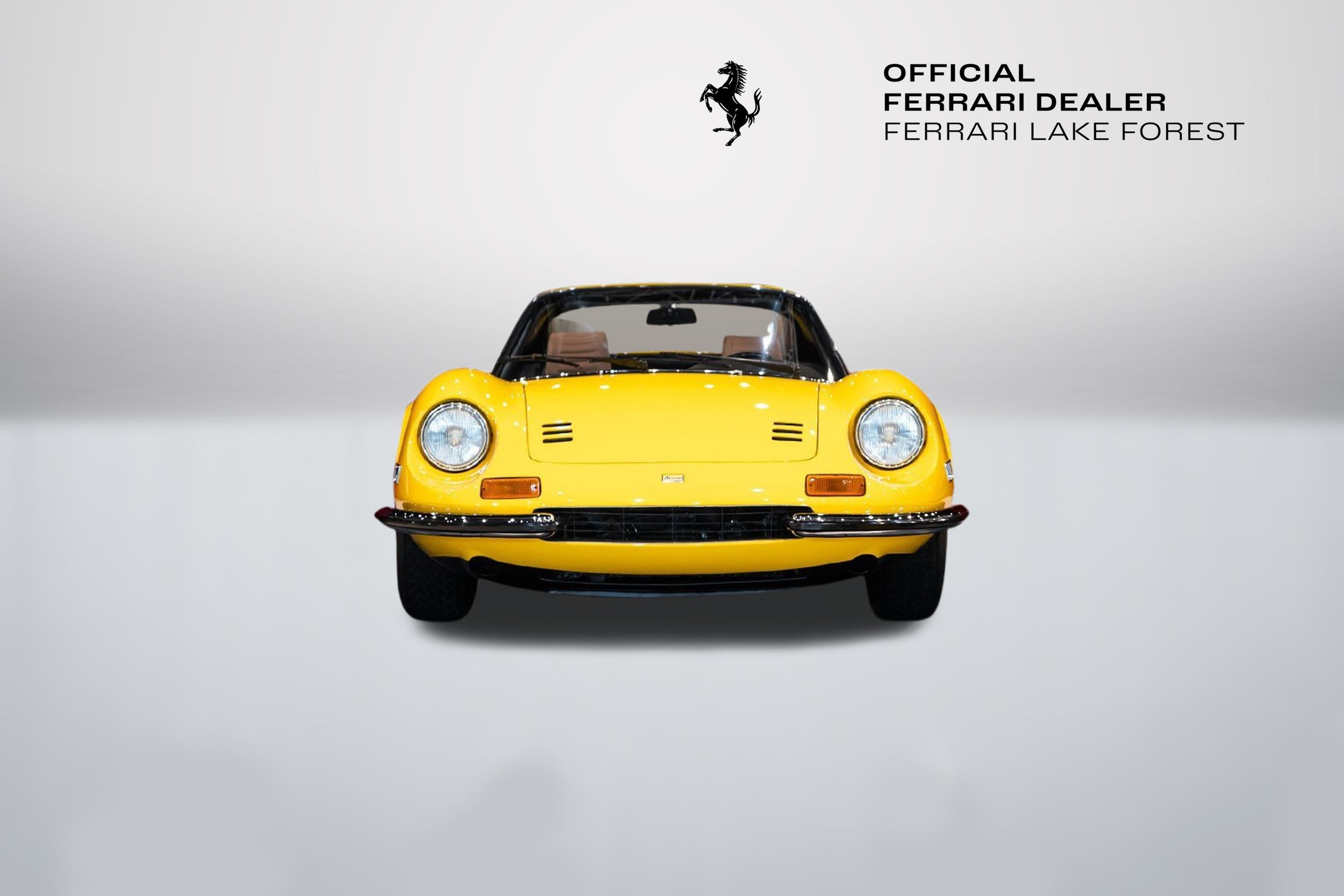

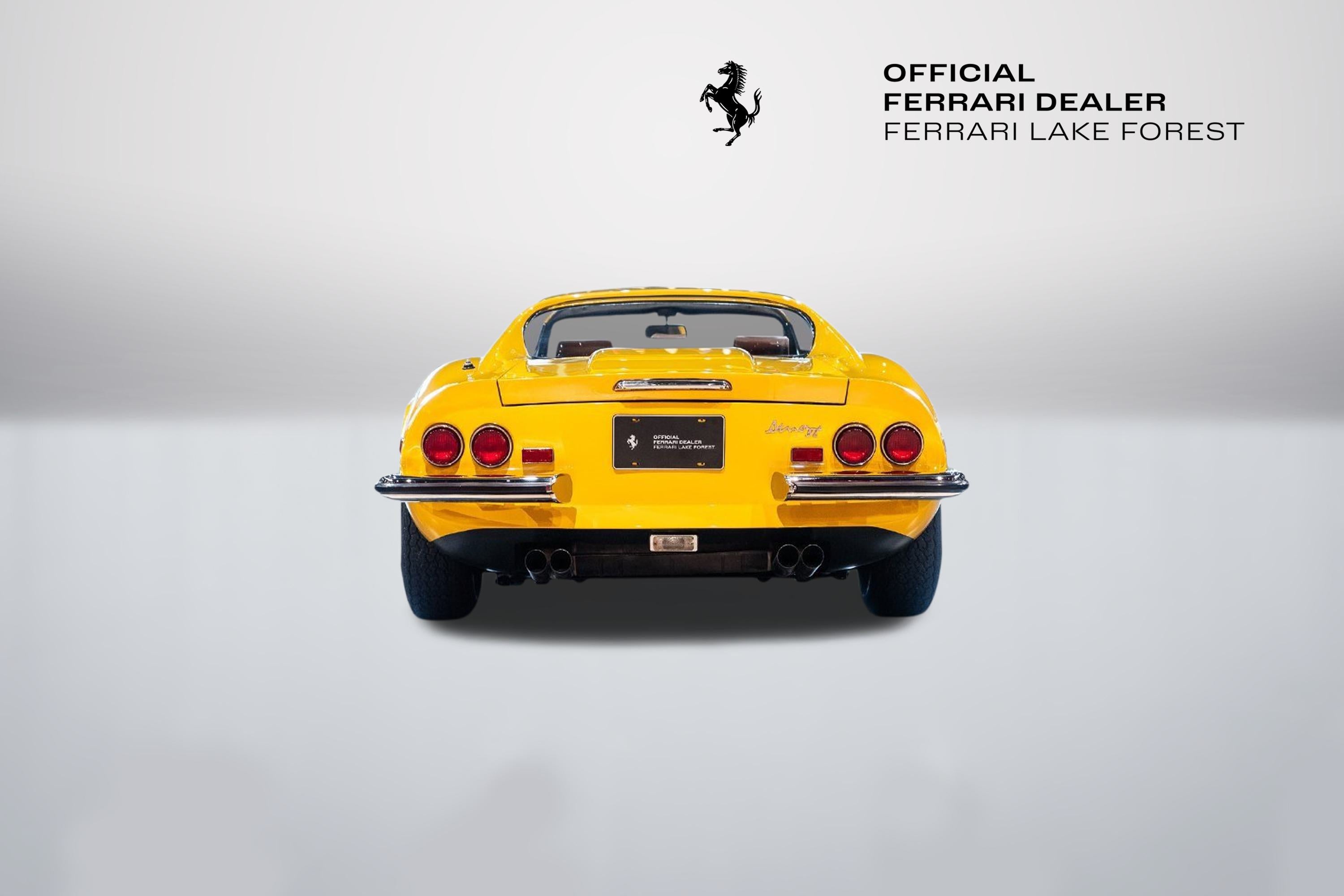

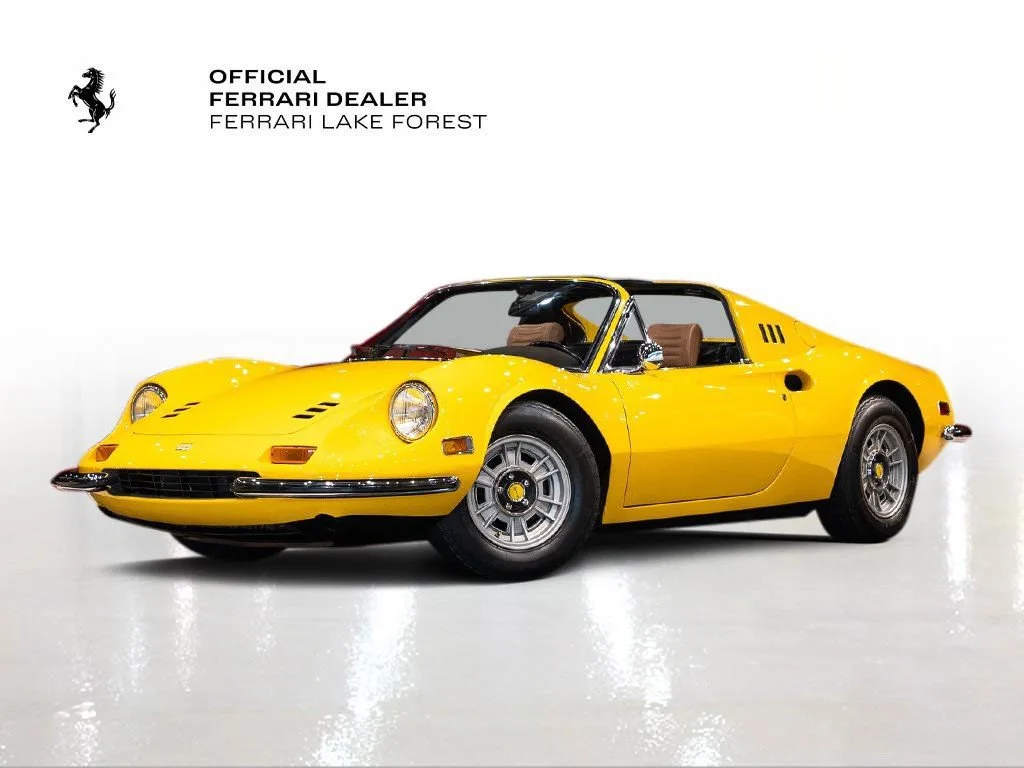

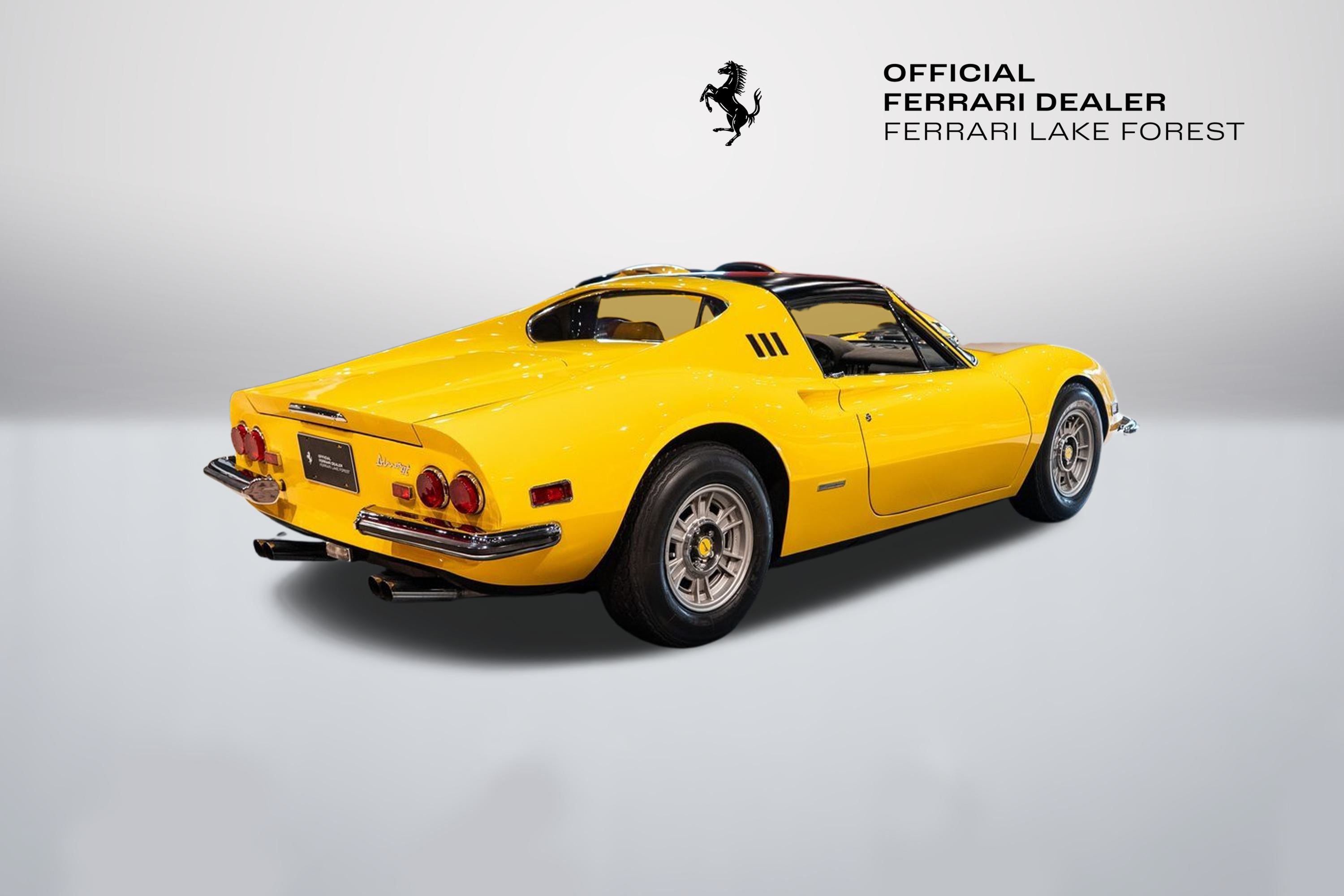

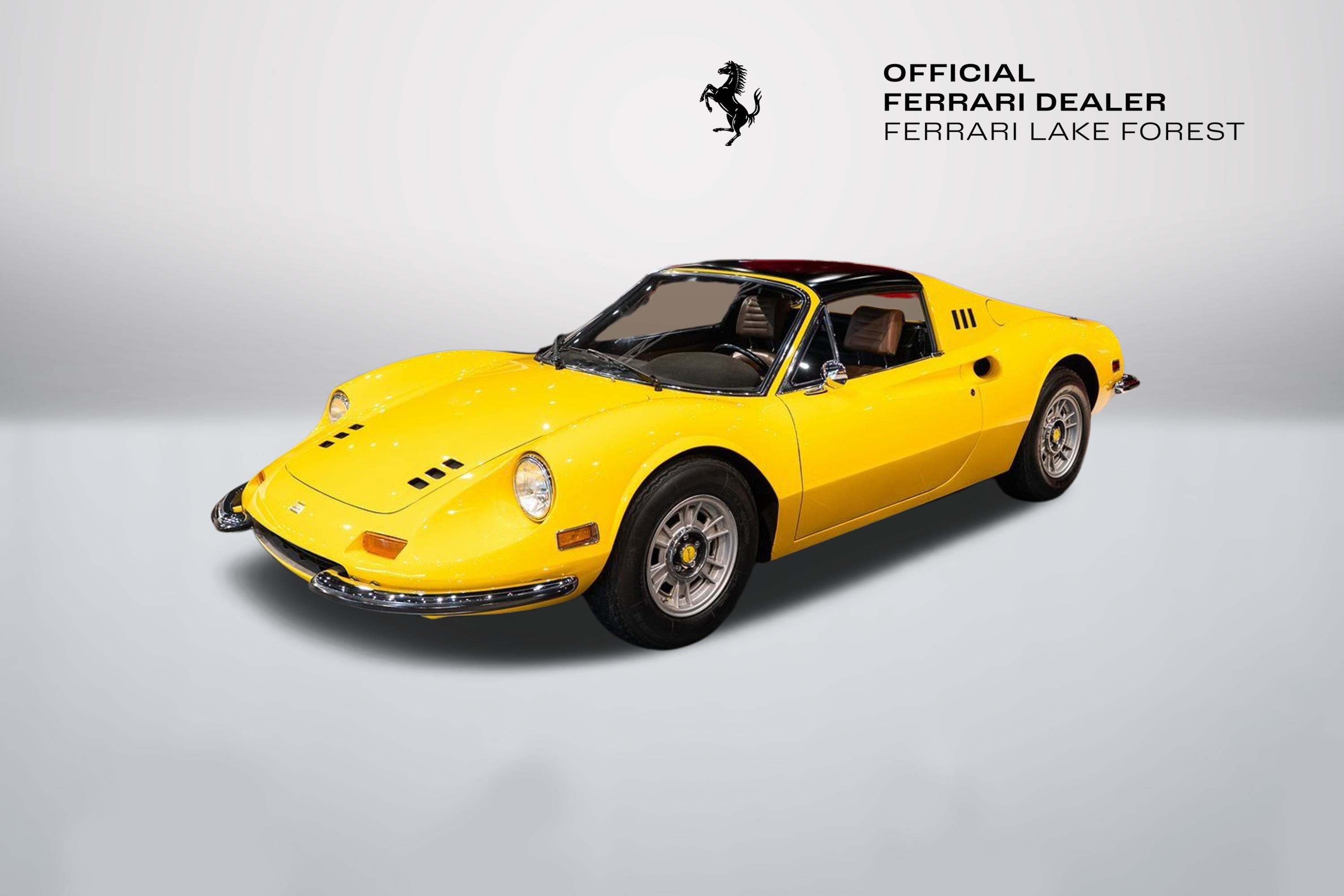

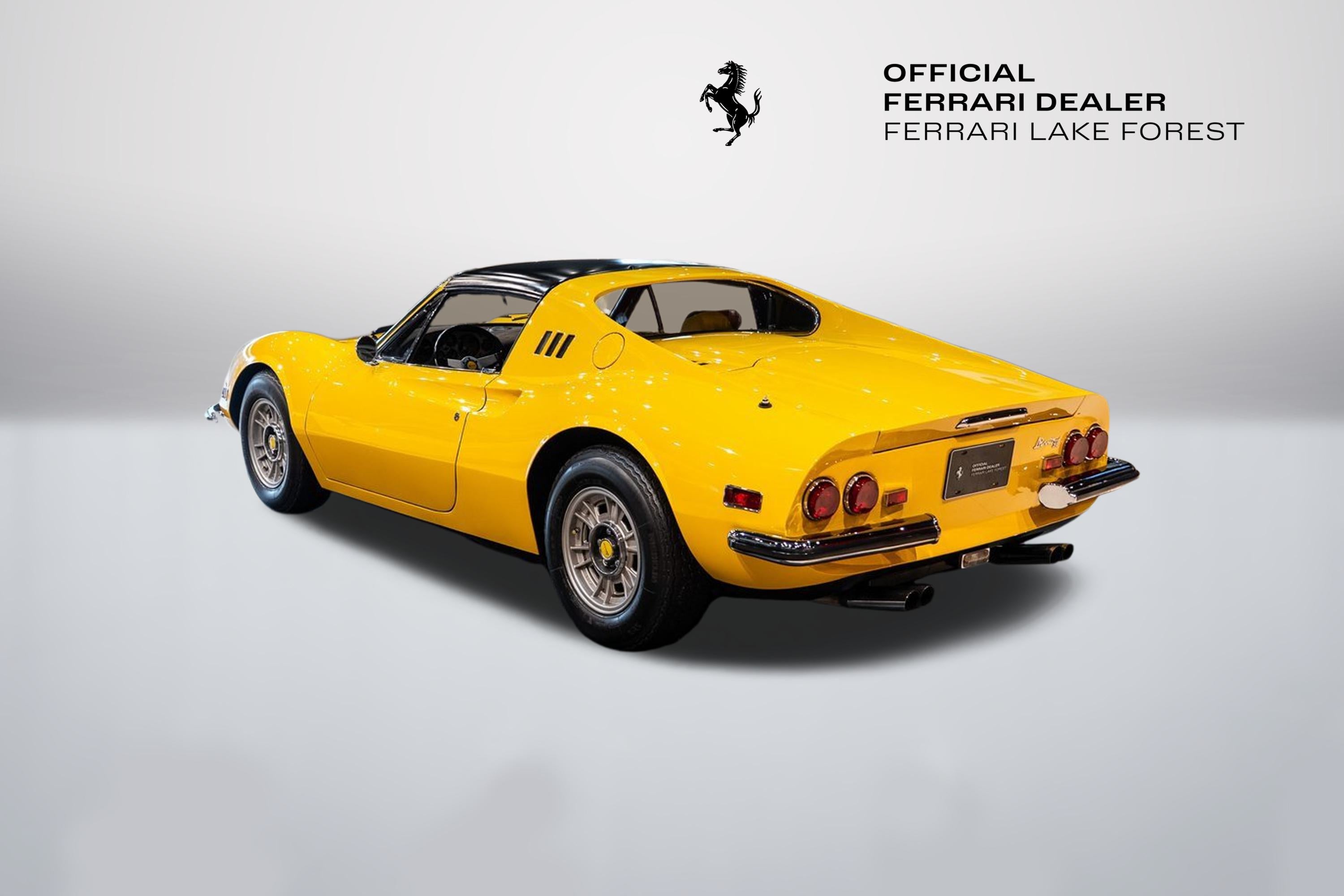

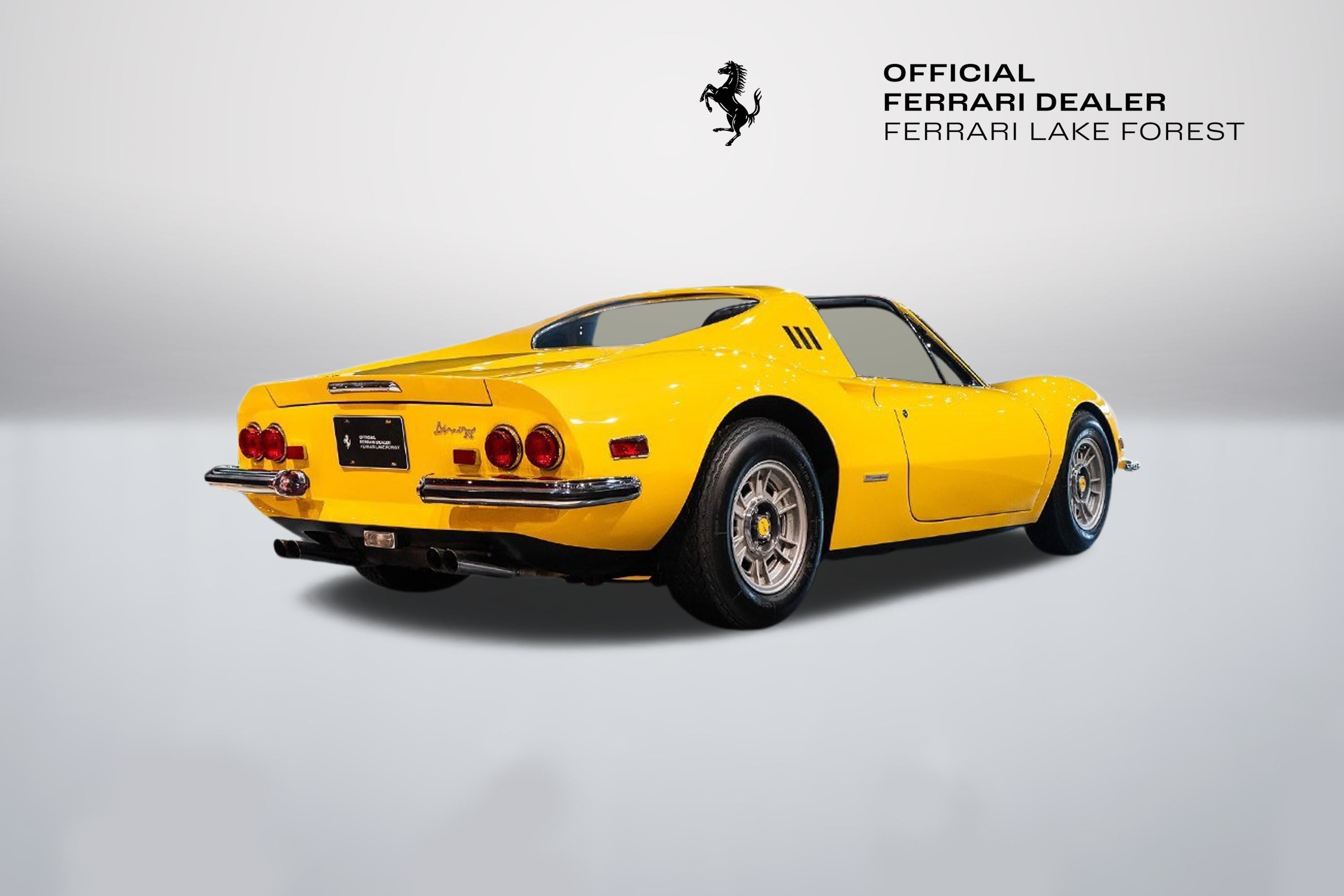

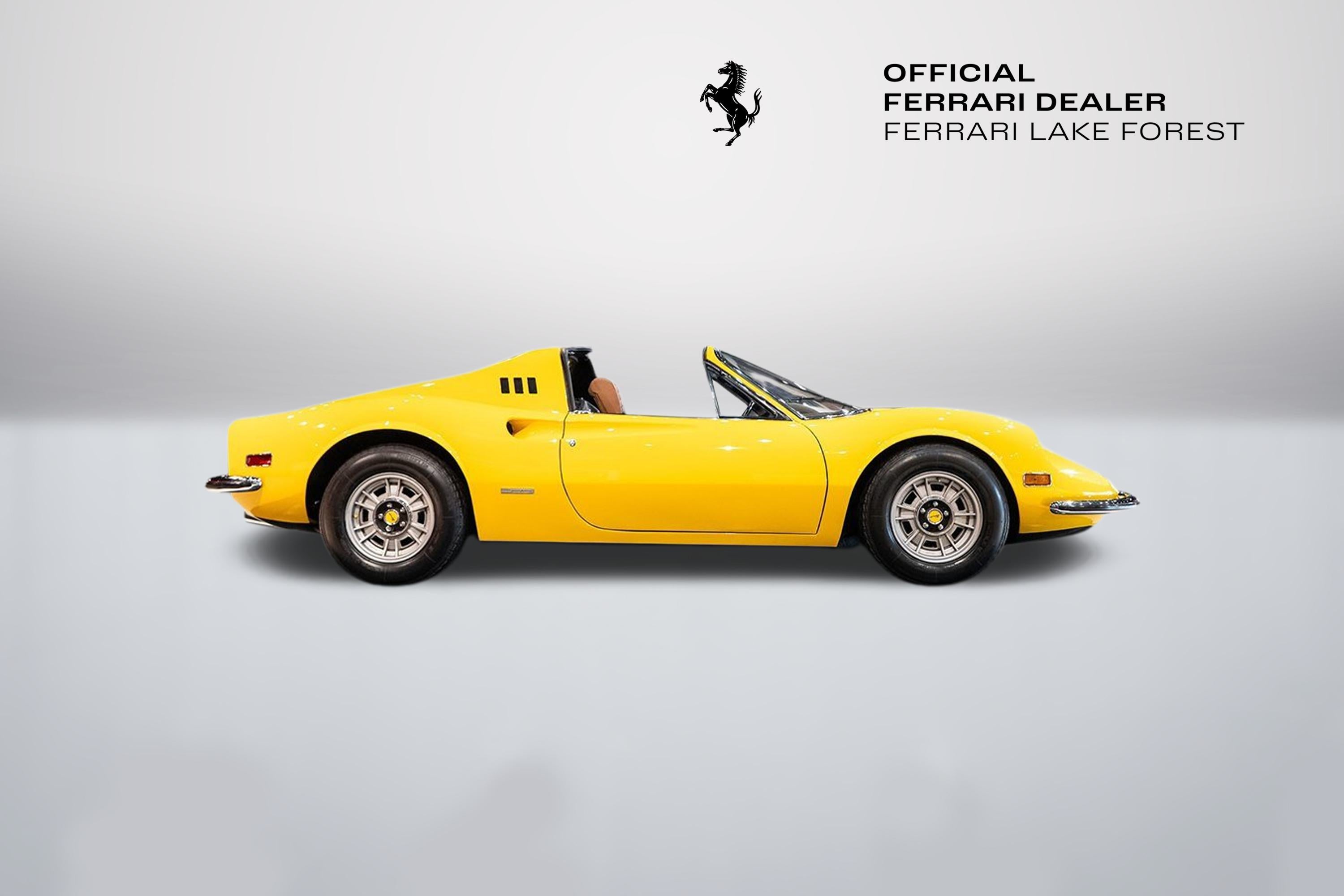

1974 Ferrari Dino 246 GTS

1974 7,083 mi

VIN# 246GTS0008044 STOCK#: 8044

$499,900

Overview

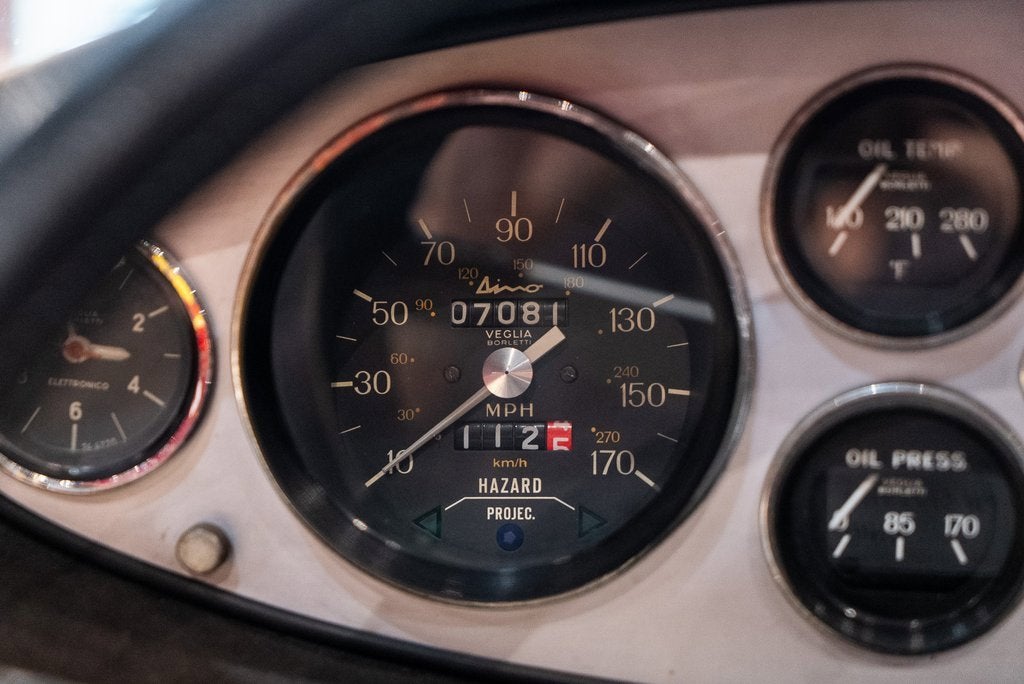

Odometer 7,083 mi

Top Speed 235 km/h (146 mph)

7 Years Maintenance

Get Inventory Updates

Finance quote

Contact

Optional equipment
Standard equipment
Technical Details
Dealer notes

No optionals for this car

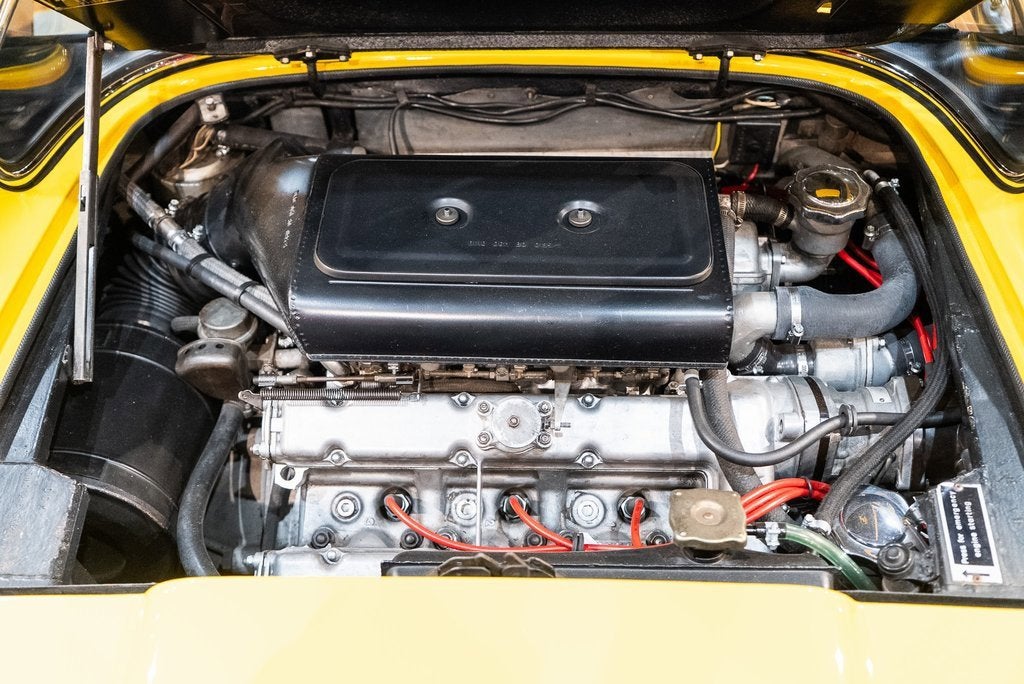

rear, transverse, 65° V6

POWERTRAIN

- sec

0–100 KM/H

143 (195) at 7600 rpm KW (HP)

MAXIMUM POWER

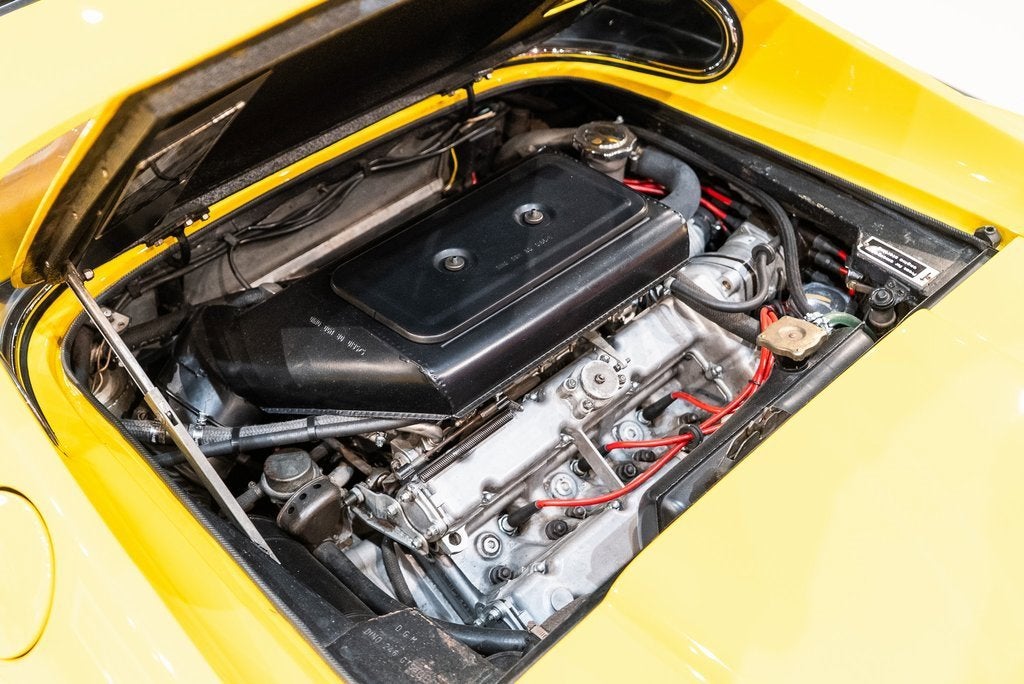

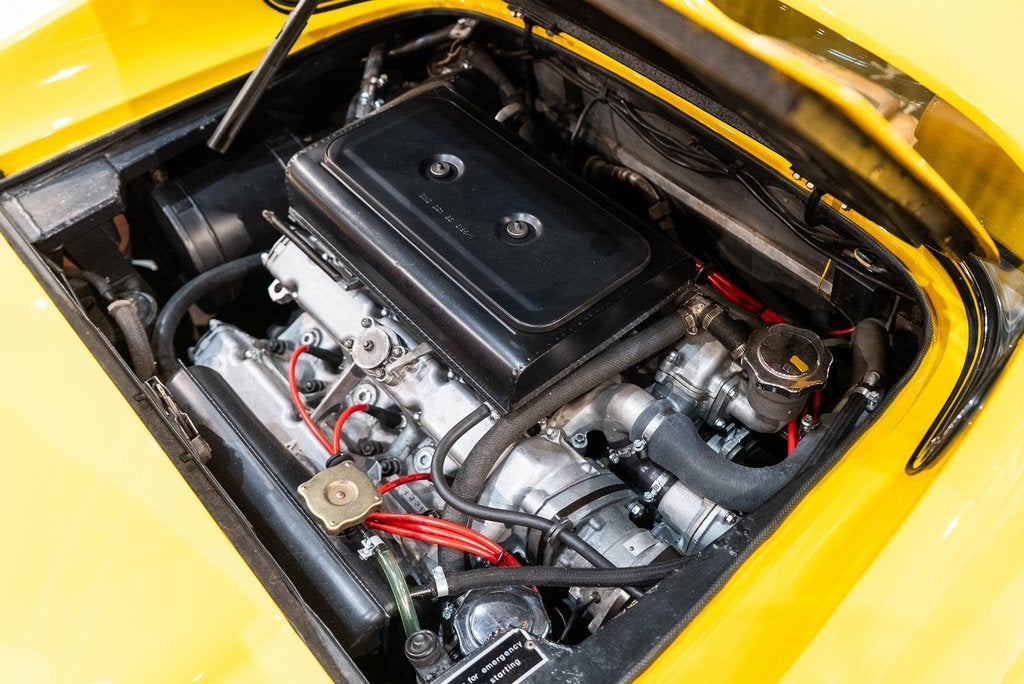

Engine

Type
rear, transverse, 65° V6
Total displacement
2419.2 cm3
Bore and stroke
92.5 x 60 mm
Maximum power
143 (195) at 7600 rpm kW (HP)
Maximum torque
- Nm (kgm)
Specific power
81 HP/l
Compression ratio
9:1
Unitary displacement
403.2 cm3
Distribution
double overhead camshafts, 2 valves per cylinder
Power supply
3 Weber 40 DCNF/7 carburettors
Ignition
single, 1 distributor
Lubrication
wet sump
Number of cylinders
6
Fuel type
Petrol

Performance

100-0 km/h
- sec
Maximum speed
235 km/h
0-400 m
- sec
0-1000 m
- sec

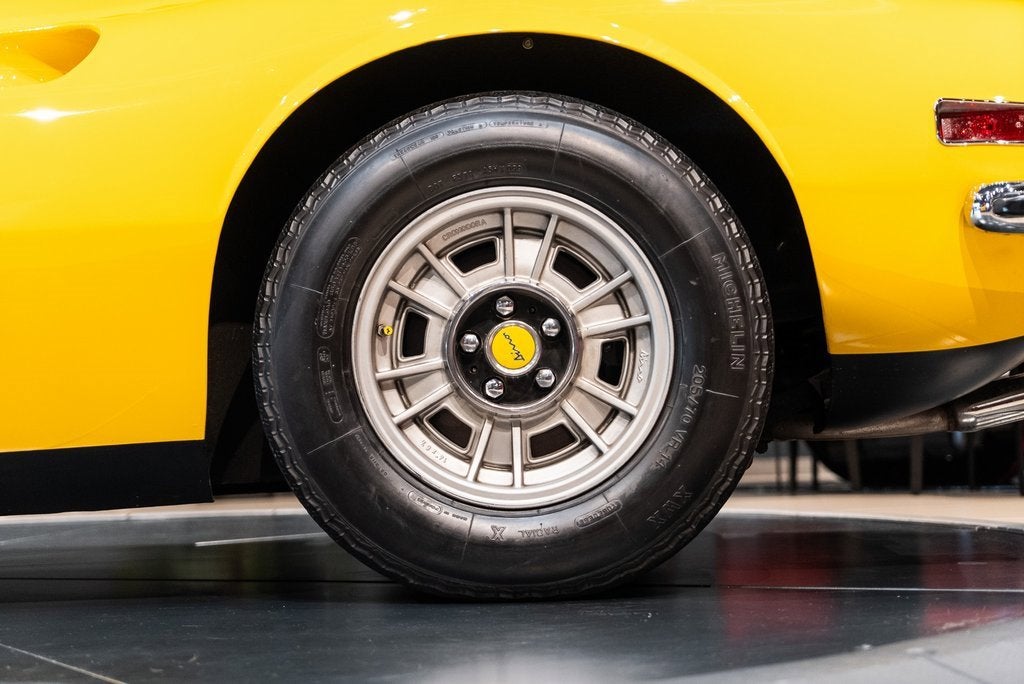

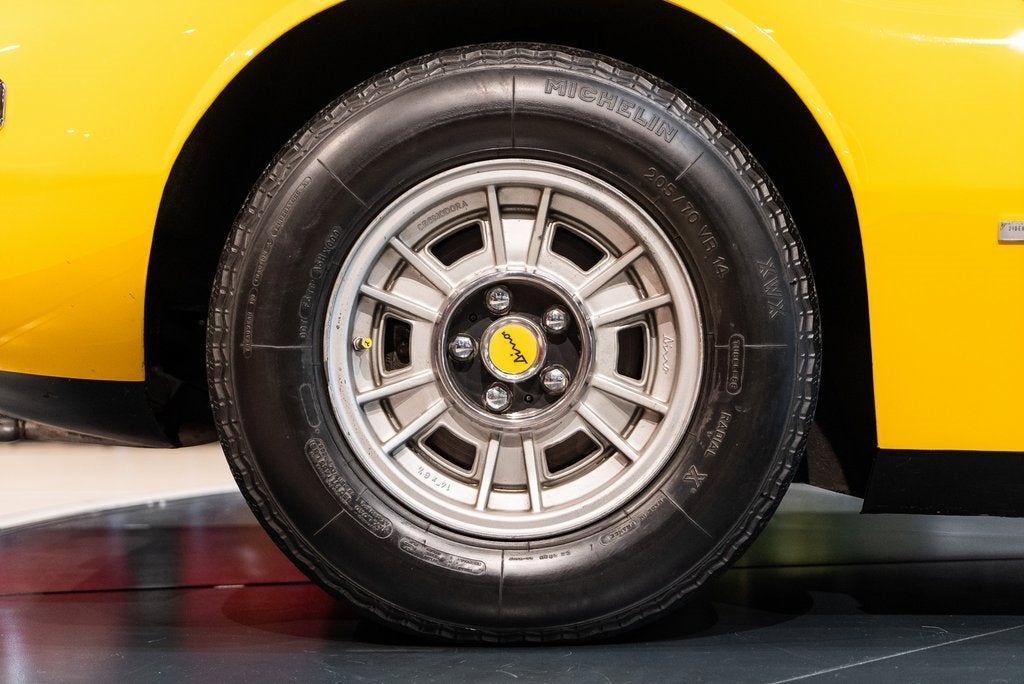

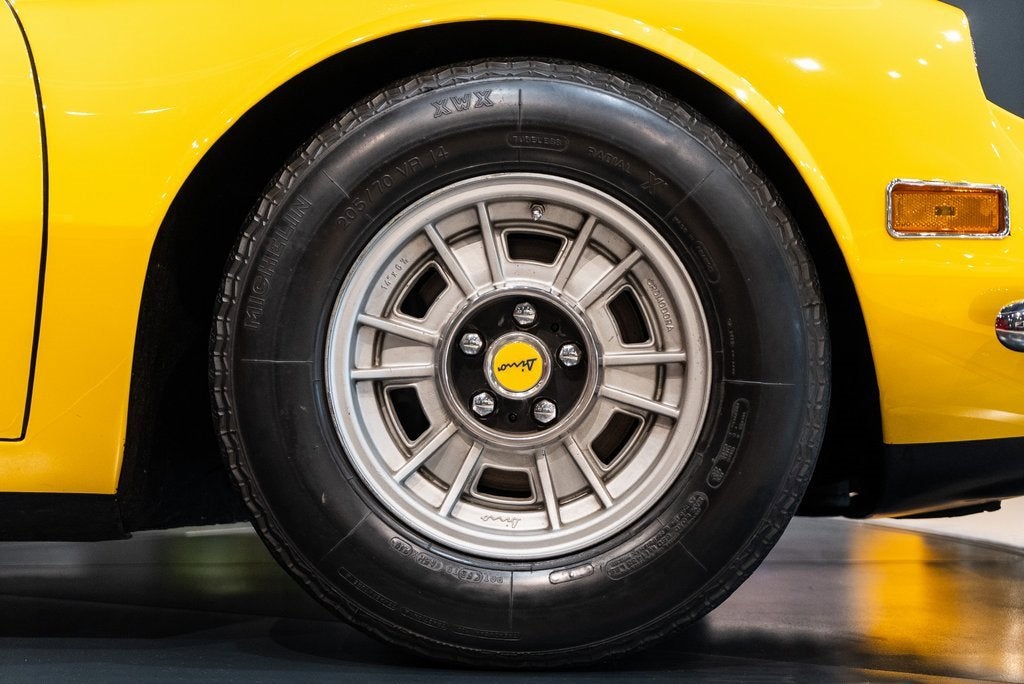

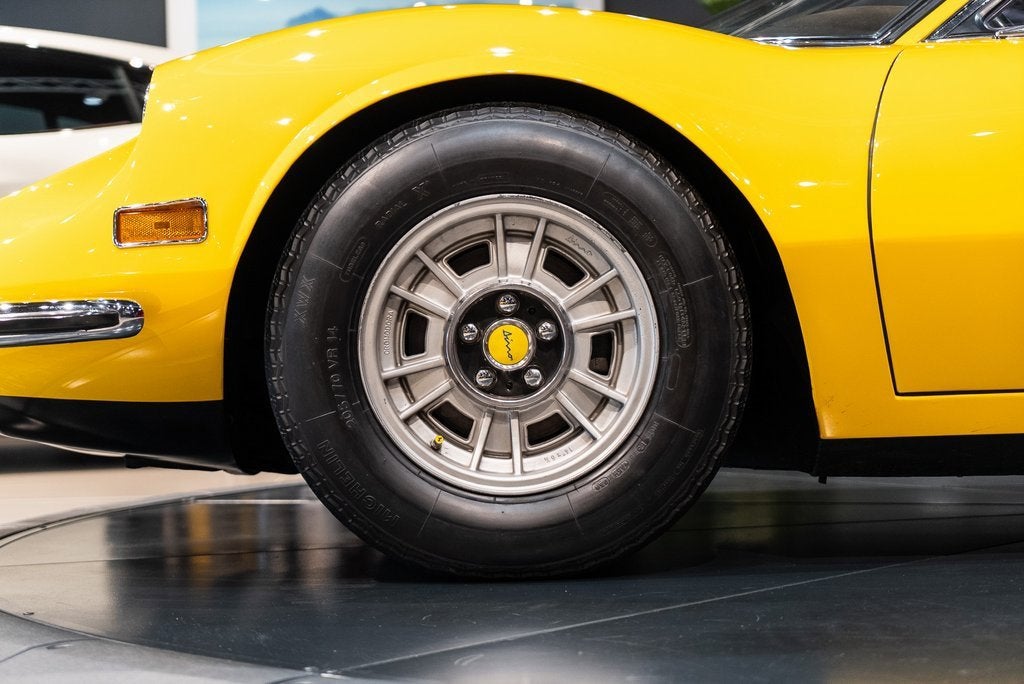

Tyres

Front
205/70 VR 14 mm; in (inches)
Rear
205/70 VR 14 mm; in (inches)

Body

Body type
spider, 2-seater

Brakes

Type
disc

Chassis

Chassis
tubular steel chassis

Dimensions And Weight

Length
4235 mm
Width
1700 mm
Height
1135 mm
Wheelbase
2340 mm
Front track
1425 mm
Rear track
1430 mm
Fuel tank capacity
capacity 65 l
Weight
1080 (dry) kg

Suspension

Front
independent, wishbones, coil springs, telescopic shock absorbers, anti-roll bar
Rear
independent, wishbones, coil springs, telescopic shock absorbers, anti-roll bar

Transmission And Gearbox

Clutch
single plate

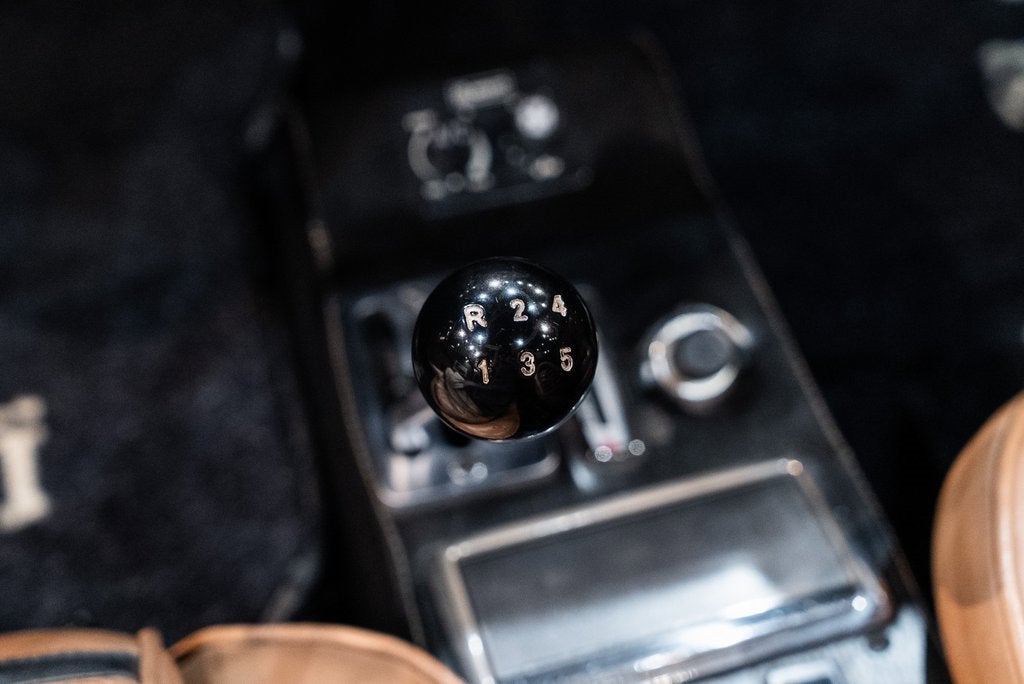

Gearbox
5 speeds + Rev
Steering
rack and pinion

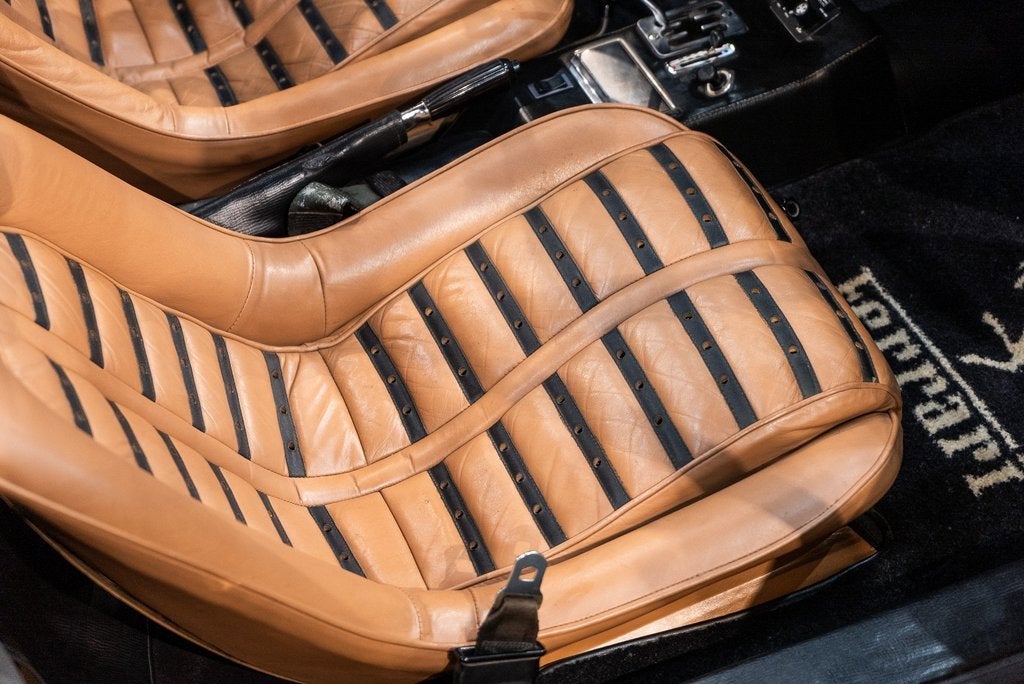

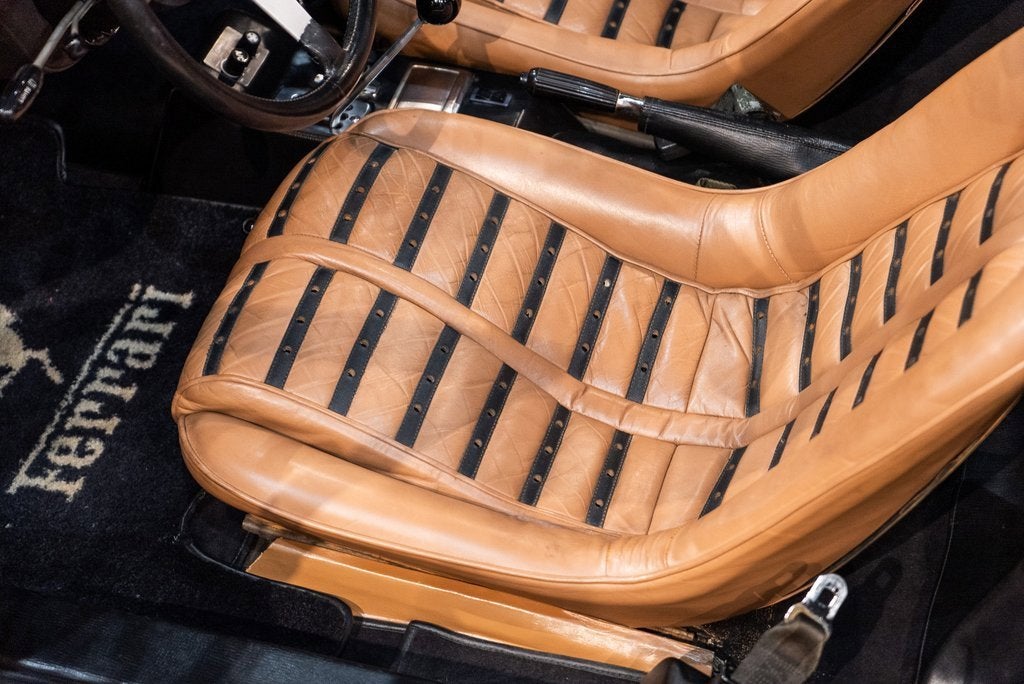

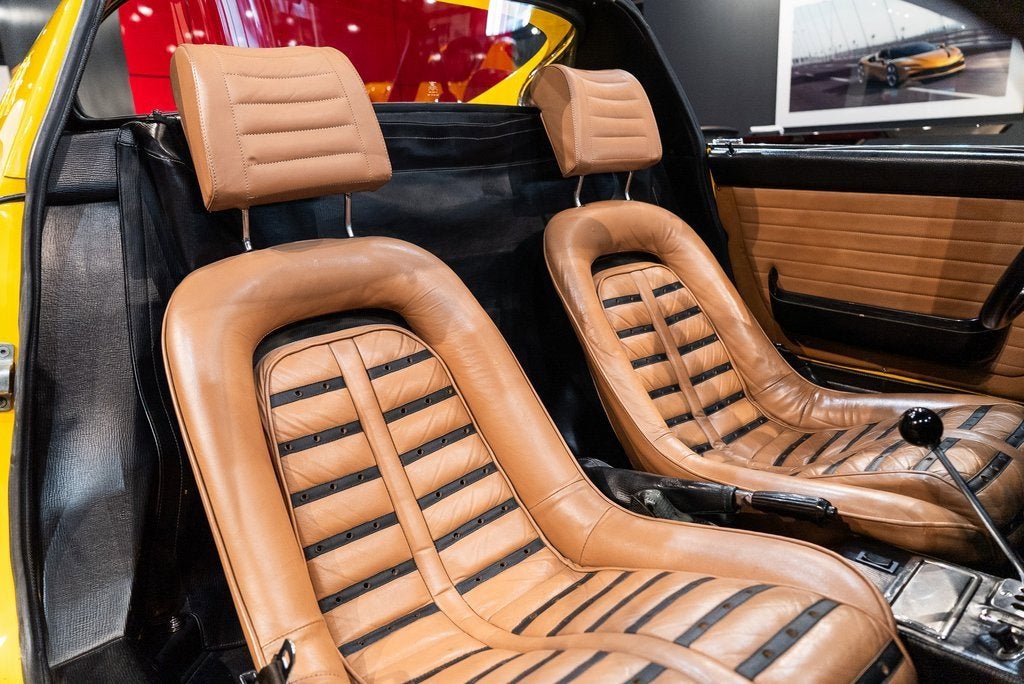

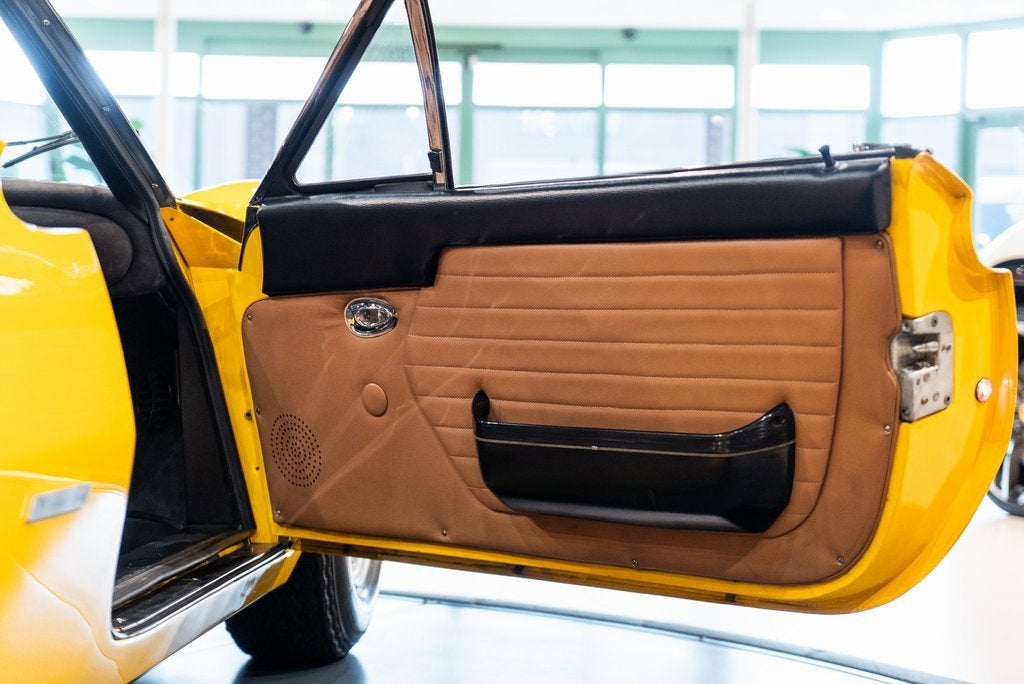

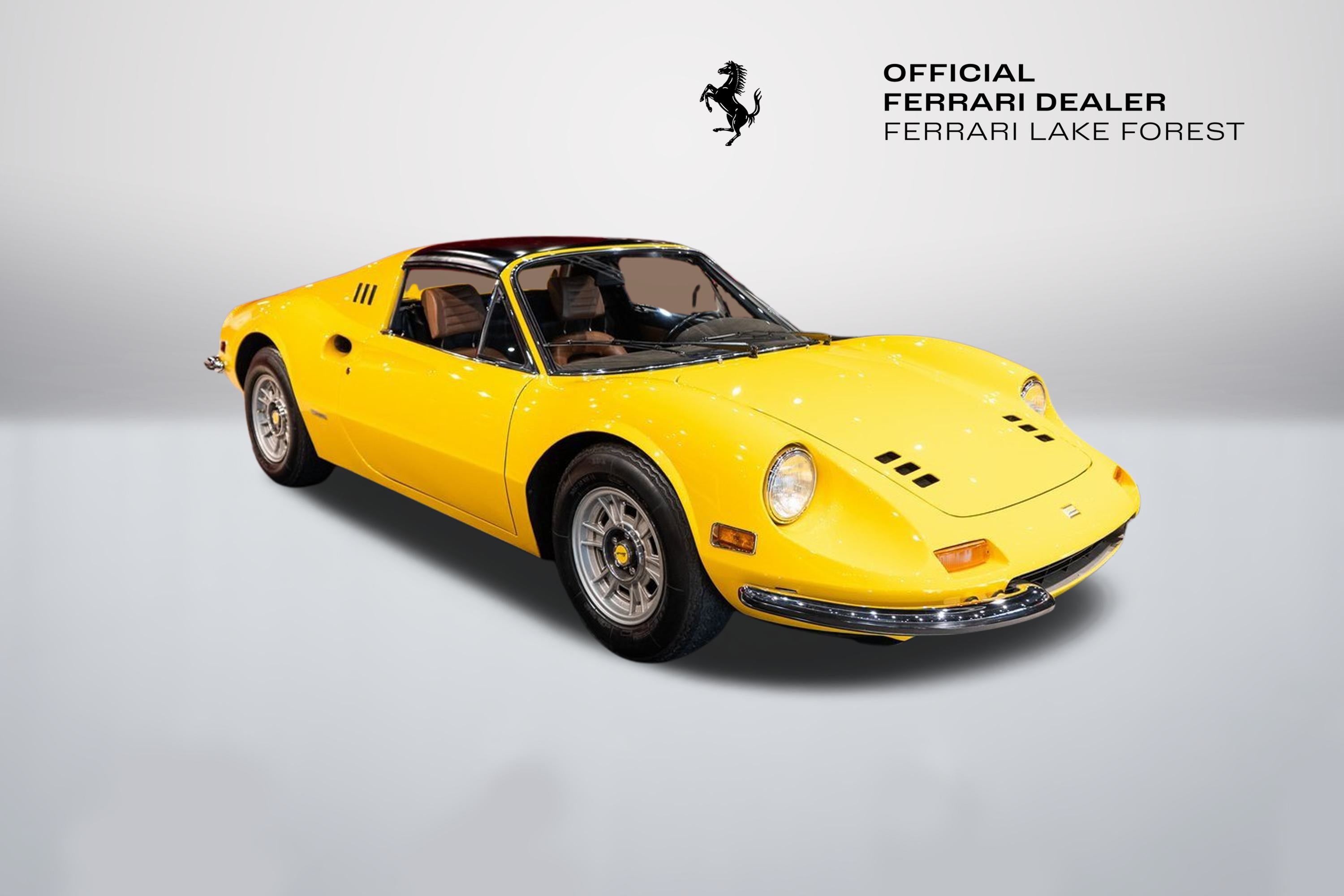

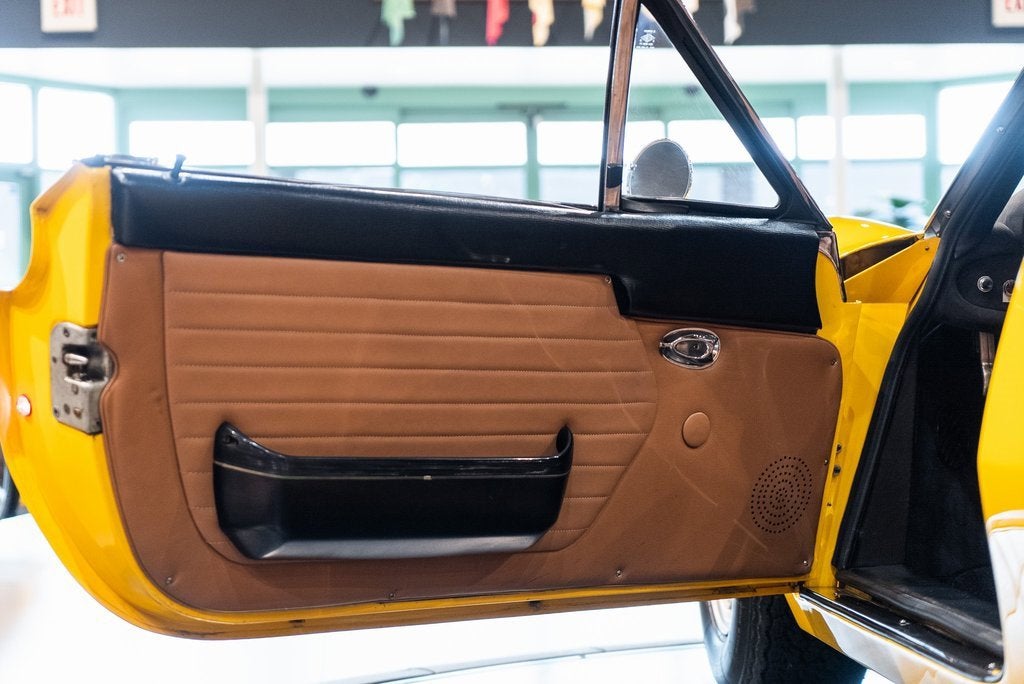

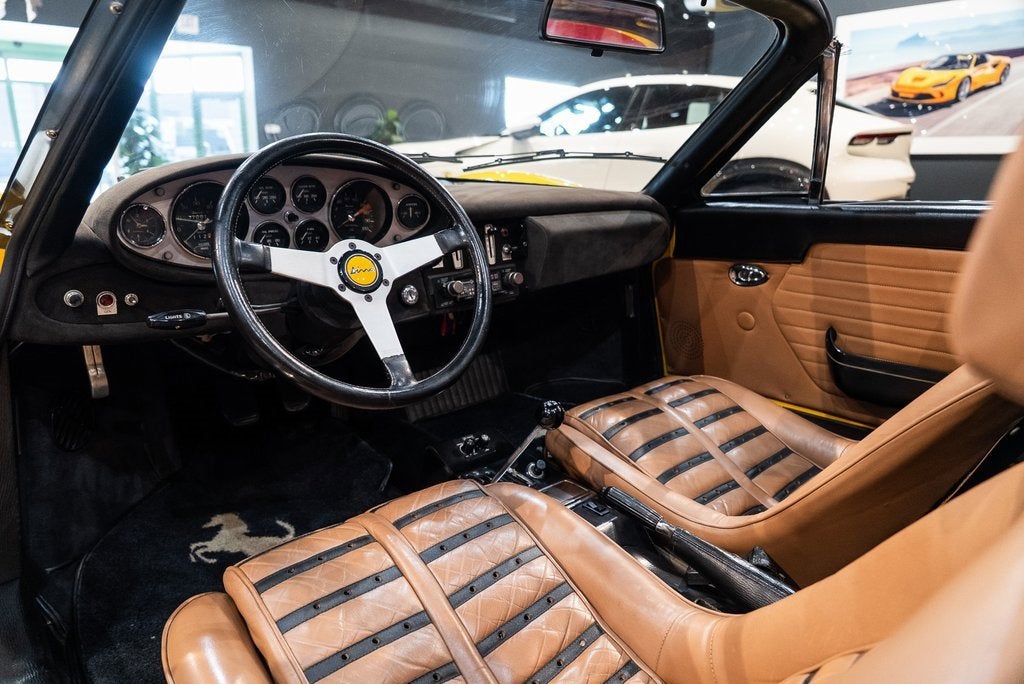

Ferrari of Lake Forest is Proud to Present this 1974 Ferrari Dino 246 GTS Finished in Stunning Giallo Midas over Tan Interior. The Ferrari Dino 246 GTS was first displayed at the 1972 Geneva Motor Show. Powered by a 65 degree V6 making a blistering 195 horsepower at 7600 rpm. This Ferrari Dino shows 7,083 miles but True Milage is Unknown. For more information on this 1974 Ferrari Dino 246 GTS call one of our Ferrari Specialists today at 847.295.6560
